Aleacion Tubos es una organización proactiva y certificada que se dedica plenamente a la fabricación, suministro y exportación de Válvula de Colector. Nuestras válvulas de colector provistas pueden permitir una configuración diferente dentro de un sistema o pueden usarse en aplicaciones como transmisores de presión diferencial. Estas válvulas de colector se desechan en manómetros, líneas de impulso del sistema, presión diferencial, trazador de flujo e interruptores.
Tubos de aleación es un conocido proveedor, distribuidor y fabricante de Colector de 3 vías tipo H, distribuidor de Válvulas de 5 vías tipo T de acero inoxidable 304, distribuidor de Válvulas de Volector de 5 vías, Válvula de Colector de montaje remoto , Distribuidor de Válvula de bloqueo y purga, Manifold tipo “T” para instrumentos de presión (tubería x brida), Válvulas de Manifold de 2 vías Montaje directo tipo T, Válvulas de Manifold de 5 vías, Tipo H, Montaje directo, Manifold-R-2 Way-02, Manifold Valves, Coplanar, Direct Mounting en India.
Manifolds Valves son instrumentos que vienen con una o más válvulas, que se pueden conectar a un transmisor. Hay algunos colectores especialmente diseñados para ser montados en un transmisor de presión. En su mayoría están hechos de acero inoxidable, acero al carbono o aleaciones. Las conexiones del colector incluyen accesorios de tubo hembra, extremos de tubería (NPT e ISO 228/1) y bridas (MSS SP-99) en tamaños de 1/2 y 3/4 pulg. Y 12 mm
Están fabricados de manera robusta y mecanizados con precisión con la tolerancia dimensional más exigente para garantizar una instalación y aplicación perfectas. Los colectores de válvulas PMT se instalan funcionalmente para controlar, medir, aislar, igualar, calibrar, drenar, ventilar o diferenciar la presión de líquidos y gases. Las válvulas de colector se utilizan ampliamente en sectores como el petróleo y el gas, los productos químicos, las aguas residuales, la energía, etc.
Lista de países donde Tubos Aleacion suministra Las Colector Válvulas de : USA, Mexico, South Korea, Spain, Argentina, Colombia, Malaysia, Saudi Arabia, Turkey, United Kingdom.
Ofrecemos variedad de Colector Válvulas de
such as End connection options include male / female NPT, Tube OD Ferrule Compression , and ISO threads from 1/8″ to 1″. Configurations include 2-way, 3-way (side / bottom entry) and 4-way valves. We have Panel Mount type , Round Body 2 pcs Design as well as Square Body 3 pc Designs .Optional features include panel mounting, locking devices and upstream / downstream venting.
Product Name | Manifold Valves |
Manifold Valves Design | Forged Body with Inline/Straight or Angle Pattern, Integral Bonnet Design |
Manifold Valves available Size | 1/8 to 1”, Custom Sizes available on request |
Manifold Valves Types | R Type - Remote Mounting T Type - Direct Mounting (Pipe to Flange Flange to Pipe) H Type - Direct Mounting (Pipe to Flange Flange to Pipe |
Connection | Thread, Weld or Tube End |
Flow Pattern | Straight/ Angle |
Power | Manual |
End Connection | Male and Female NPT, BSPT, Socket Weld (SW) or Dual Ferrule Tube Connections, Male to Female, Female to Female |
Presure Ratings | 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI |
Temperature Rating |
|
Stainless Steel | ASME / ASTM SA / A182 SA 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, SS 304/L, SS 316/L, SS 310, SS 321, SS 347H, SS 317L, SS 410, SS 416, SS 420, SS 430, SS 904L, SS 17-4-PH, SS 15-5-PH |
Duplex Steel | UNS S31803, UNS S32205, UNS S32750, UNS S32760, UNS S32950, A182 F51, A182 F55, A182 F44, A182 F60 |
Alloy Steel | ASTM SA 182 - F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70, SA105 |
Alloy Steel | ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19 |
Nickel Alloy | Monel : Monel 400, Monel 401, Monel 404, Monel K500, Monel R-405 Nickel : Nickel 200, Nickel 201 Inconel : Inconel 600, Inconel 601, Inconel 602, Inconel 625, Inconel 725, Inconel X750 Incoloy : Incoloy 800, Inconel 825 Hastelloy : Hastelloy C276, Hastelloy C22, Hastelloy B2, Hastelloy G30, Hastelloy G35 |
Stem | Vee Steam is standard for pressure tightness even at elevated temperatures. Regulating Stem and Soft-seat Stem are optional |
Packing | PTFE, Grafoil, PEEK/ PCTFE |
Testing | 100% Factory Tested |
Testing and Inspection | Manufacturer Test Certificate as per EN 10204 / 3.1, Raw Materials Certificate, Third Party Inspection, Buyer Inspection |
Valve Type | Class Rating | Size Range | Shell Material As Per Specification |
Swing Check | 150# | 2" to 36" | ASTM A216 Gr. WCB ASTM A217 Gr. WC1 ASTM A217 Gr. WC6 ASTM A217 Gr. WC9 ASTM A217 Gr. C5 ASTM A217 Gr. C12 ASTM A351 Gr. F8 ASTM A351 Gr. F3 ASTM A351 Gr. F8M ASTM A351 Gr. CF3M ASTM A351 Gr. CN7M ASTM A351 Gr. CF8C ASTM A351 Gr. CD4Mcu ASTM A351 Gr. CK3MCuN ASTM A352 Gr. LCA ASTM A352 Gr. LCB ASTM A352 Gr. LCC ASTM A494 Gr. CW6MC ASTM A494 Gr. CW2M ASTM A494 Gr. CW2M ASTM A494 Gr. CY40 ASTM A494 Gr. CU5MCuC ASTM A995 Gr. 1A ASTM A995 Gr. 4A ASTM A995 Gr. 5A ASTM A995 Gr. 6A NACE malt. Grade to NACE MR0175/NACE MR |
Swing Check | 300# | 2" to 36" | |
Swing Check | 600# | 2" to 32" | |
Swing Check | 800# | 1/2" to 2" | |
Swing Check - PRESSURE SEA L | 900# | 1/2" to 20" | |
SWING CHECK - PRESSURE SEA L | 1500# | 1/2" to 20" |
DESCRIPTION | UNS GRADE | FORGING | CASTING | BARSTOCK |
---|---|---|---|---|
Carbon Steel | K30504 | A105 | A216 WCB | A105 |
Low Temp Carbon | K03011 | A350 LF2 | A352 LCB | A350 LF2 |
High Yield Steel | K03014 | A694 F60 | - | A694 F60 |
3 1/2 Nickel Steel | K32025 | A350 LF3 | A352 LC3 | A350 LF3 |
5 Chrome, 1/2 Moly | K41545 | A182 F5 | A217 C5 | A182 F5 |
1 1/4 Chrome, 1/2 Moly | K11597 | A182 F11 | A217 WC6 | A182 F11 |
2 1/4 Chrome, 1 Moly | K21590 | A182 F22 | A217 WC9 | A182 F22 |
9 Chrome, 1 Moly | K90941 | A182 F9 | A217 WC6 | A182 F9 |
13 Chrome | S41000 | A182 F6A | A351 CA15 | A276 or A479 410 |
304 | S30400 | A182 F304 | A351 CF8 | A276 or A479 304 |
304L | S30403 | A182 F304L | A351 CF3 | A276 or A479 304L |
316 | S31600 | A182 F316 | A351 CF8M | A276 or A479 316 |
316L | S31603 | A182 F316L | A351 CF3M | A276 or A479 316L |
317L | S31703 | A182 F317L | A351 CG8M | A276 or A479 317L |
321 | S32100 | A182 F321 | - | A276 or A479 321 |
347 | S34700 | A182 F347 | A351 CF8C | A276 or A479 347 |
17-4PH | S17400 | A564 630 | - | - |
Alloy 400 | N04400 | B564 N04400 | A494 M35-1 | B164 N04400 |
Alloy K500 | N05500 | - | - | B865 N05500 |
Alloy 800 | N08800 | B564 N08810 | - | B408 N08800 |
Alloy 825 | N08825 | - | - | B425 N08825 |
Alloy 600 | N06600 | B564 N06600 | A494 CY40 | B166 N06600 |
Alloy 625 | N06625 | B564 N06625 | A494 CW 6MC | B446 N06625 |
Alloy B2 | N10665 | B564 N10665 | A494 N 12MV | B335 N10665 |
Alloy C | N10002 | - | A494 CW6M | - |
Alloy C22 | N06022 | B574 N06022 | A494 CX2MW | B574 N06022 |
Alloy C276 | N10276 | B564 N10276 | A494 CW12 MW | B574 N10276 |
22% Duplex | S31803 | A182 F51 | A890 Gr 4A | A276 or A479 S31803 |
25% Duplex | S32750 or 32760 | A182 F53 | A890 Gr 6A | A276 or A479 S32750 or 60 |
254SMO | S31254 | A182 F44 | A351 CK3MCuN | A182 F44 |
904L | N08904 | B625 N08904 | - | B649 N08904 |
Titanium | R50400 | B381 F2 | B367 C2 | B348 Gr 2 |
Ventajas de una Válvula Colectora
Colector Válvulas de Embalaje :
Todas las roscas expuestas de los productos están protegidas con tapas de plástico para evitar daños y cada conjunto se empaqueta en una bolsa de polietileno transparente y sellada para su limpieza y se empaqueta cuidadosamente en cajas de cartón para evitar daños durante el transporte. Todos y cada uno de los paquetes están etiquetados para una identificación adecuada y fácil.
Prueba de válvulas de Colector :
Prueba Estándar : Each valve is factory tested with nitrogen at 1000 psig (69 bar) for leakage at the seat and packing, the maximum allowable leak rate of 0.1 sccm.
Prueba Hidrostática Opcional : This test is performed with de ionised water at 1.5 time the working pressure. Other tests like vibration, temperatures, helium etc are available upon requests.
2 Way - Gauge Type (F) X (F)
2 Way - Gauge Type (F) X (M)
2 Way Angle Type
2 Way - Gauge Type (F) X (F)
2 Way - Gauge Type (F) X (M)
2 Way - Gauge Type (M) X (F)
3 Way 'F' Type (Separate Mounting)
3 Way 'F' Type with Drain (Separate Mounting)
3 Way 'T' Type (Integral Mounting)
3 Way 'T' Type with Drain (Integral Mounting)
3 Way 'H' Type (Integral Mounting)
5 Way 'F' Type (Separate Mounting)
5 Way 'T' Type (Integral Mounting)

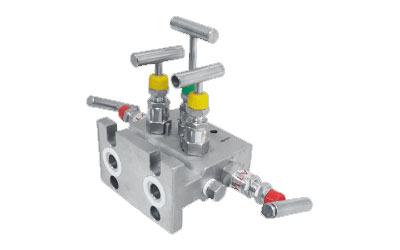

5 Way 'H' Type (Integral Mounting)
5 Way Manifold Valve, Coplanar Type
